How to Root and Flash the ClockworkMod Recovery on the Galaxy Tab P1000 (running Gingerbread)

The original Galaxy Tab has been around for almost two years now, but the device, with its 1GHz Cortex-A8 CPU, might take a while to fade away in the background.  There is a robust development community that has built up around this device and it is still getting custom ROMs, some even based on ICS.  This post will show you to root this device and flash the ClockworkMod Recovery at the same time and by the end of the procedure, you should be able to choose a custom ROM of your liking and flash away!!

I.  Before You Begin

1.  As always, back up your data before you begin with the procedure.

2.  Make sure that you have all the proper drivers installed on your Windows PC before you proceed; if in doubt about this, download and install Samsung Kies and this should take care of the drivers needed for the procedure to work.

3.  This method is only for the GSM version of the Galaxy Tab P1000 running Gingerbread 2.3.3, so make sure that this is the device you have.

II.  Necessary Downloads

1.  Odin3 version 1.7.

2.  Root and ClockworkMod Recovery tar File.

III.  Rooting the Galaxy Tab and Flashing ClockworkMod Recovery

1.  Download and extract Odin3 v1.7.rar to a folder on your desktop.

2.  From the extracted folder, double-click on Odin3 v1.7.exe to open the Odin application.

3.  On Odin, click on PDA.  Navigate to the location where you have downloaded CF-Root-TAB7_XX_OXA_JQ1-v3.3-CWM3RFS.tar to from above and select it.

4.  This is the most important instruction ever and we really can’t stress how important this is.  Make sure that the Re-Partition tickbox is unchecked!!  Ticking this is a surefire way to brick your device.

5.  Power down your P1000.

6.  With the device powered down, press and hold the Volume Down + Power buttons until the device boots into Download Mode.

7.  Connect the device to your Windows PC using a microUSB cable.  Odin should now recognize your device and the ID:COM should light up yellow.

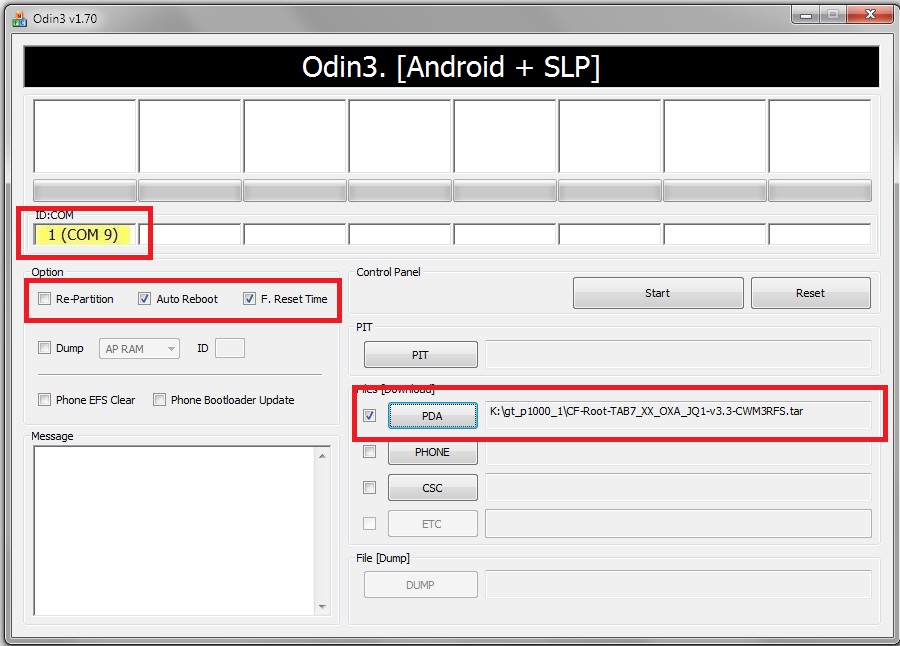

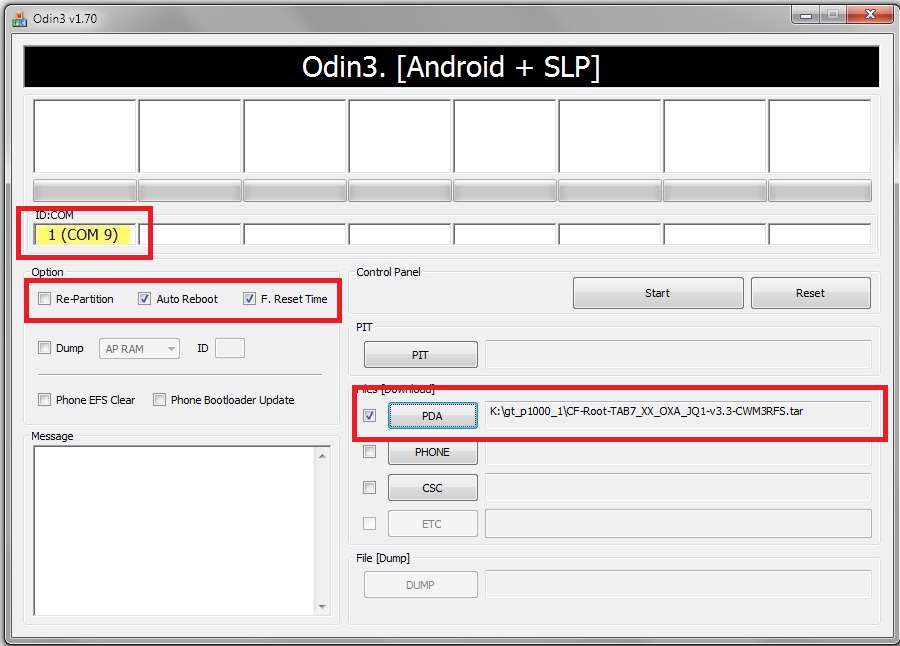

8.  Make sure that your Odin screen looks like this before you proceed:

9.  Click on Start.  Again, make sure that Re-Partition is unchecked!!

You have now rooted and installed ClockworkMod Recovery on your Galaxy Tab P1000!!

IV.  Installing Custom ROMs

1.  Download your favorite ROM from our ROM Section.

2.  Copy the downloaded ROM zip file to the SD card on your device and disconnect the device from your PC.

3.  Boot into ClockworkMod Recovery.  To do this, with the device powered down, press and hold Volume Up + Power until it boots into Recovery.

4.  Make a Nandroid backup before you install the new ROM.

5.  After backup, select ‘Install zip from SD card‘.  Navigate to the location where you downloaded the ROM zip, select it and then select ‘Install‘.

All thanks go to Chainfire for making it easy for us!!  Visit his thread on XDA to thank him or even donate if you like his work!!

This is part of our Android How To’s. We have how to’s on rooting, loading ROMs, and tons of other tips and tricks for your specific device or for Android devices in general! For all of our Android How To’s, head here.

82 responses to “How to Root and Flash the ClockworkMod Recovery on the Galaxy Tab P1000 (running Gingerbread)”

  1. Master_ELLIs says:

    Thank you. Works perfectly.

  2. Dave says:

    MicroUSB? can I just use the usb cable that comes with the galaxy tab p1000?
    thank you so much!

  3. john says:

    when i download CF-Root-TAB7_XX_OXA_JQ1-v3.3-CWM3RFS.tar all i download is a zimage file, i think the link is broken or sumthing

  4. GELIMA says:

    How long does the installation take after step 9? what should I see in my tablet and in Odin3?



    • Mahesh Makvana says:

      It should take a little while to flash the file using Odin. You should be able to see the current process on your PC’s screen and when it’s done, you’ll have a confirmation message on your screen.

      Thanks GELIMA!

  5. Davide says:

    Thanks, this worked for me

  6. sajjan says:

    will this work with froyo ?

  7. joginder says:

    I want to unroot my tab … i rooted it using odin, but now i m feeling it become slow so i want to back it in my original stage is there any way for it


  8. Idiot says:

    Hi, i followed the above steps for froyo not noticing that it won’t work for froyo. Now my phone just won’t boot up, it tries and then again it restarts..what can i do?

    • Dax Krishna says:

      Try flashing the tab back to Gingerbread stock and then try this procedure. If that doesn’t work, flash stock Froyo, update to official Gingerbread and then try again.

      You can find stock firmwares here!

      • Idiot says:

        thanx for the response,
        i did this,
        1. flashed a ginger bread rom and didn’t work
        2. again i did follow this article and managed to flash the cwm recovery
        3. then I took a cyanogenmod ics for GT-P1000 and flashed
        It worked!

        • Mahesh Makvana says:

          That is cool !

          • Idiot says:

            have one little prob though,
            mobile broadband doesn’t work, when I go to set the APN settings, the moment u click ion t, it goes to the previous menu
            any idea on how to solve it?

            thanx inadvance

          • Mahesh Makvana says:

            It seems something’s there on your phone that’s causing this issue. Look for any suspicious app on your phone and remove (uninstall) it and then try again.

        • Tiao says:

          please can you tell me step by step what you did to take back to the official room, my tab had froyo and i upgrade, just like you did, and now my device restart repeatedly

      • idiot2 says:

        Hi, i had the same problem as “idiot”, i have a question, how do i flash back to Froyo? i downloaded the firmware and tools from sammobile, but i dont know how to proceed ):

  9. androidREN says:

    why Odin3 cant detect my device when it is on download mode? the box wont turn yellow. but if im in the recovery mode or switched on, it turns yellow.. Odin can detect it but not on its download mode? (volumedown+power)

  10. Kishor B says:

    Thanks, this is very easy and trouble free procedure you explained and it worked for me without any problem.

  11. Neil says:

    what happen if i wipe data in cwm?, im in gingerbread 2.3.3..

  12. Klaus says:

    Does this way also work with Gingerbread 2.3.6

    • Felipe says:

      I’ve tried on my 2.3.6 and after the first boot the touchscreen stopped responding. I’m right now reverting everything back to stock 2.3.6… I won’t try again…

  13. Manoj1580 says:

    when i connect the tablet to the pc no message is shown in the odin in as it is to be yellow (no sign) while it is in the download mode. please suggest.

  14. James says:

    I did the steps as mentioned and my touchscreen stopped working. what can I do?

  15. boycey412 says:

    all it says is ‘SetupConnection’?

  16. stanley says:

    thanks a lot for this.. it works for my gt-p1000 softly and no proble.. godbless you^_^

  17. Pud says:

    I have the clockworkmod installed now, but I can’t get to copy a ROM to install into the phone, can someone help ?

  18. janak says:

    odin is not identifying my device. ID:COM is not getting yellow. its blanck. can i proceed?

    • Mahesh Makvana says:

      If it’s not turning yellow, that means you don’t have the required drivers installed on your PC. To solve this, just head to your manufacturer’s website and download the drivers for your device, then install them on your PC.

      It should solve the issue.

  19. janak says:

    rply asap

  20. EducatedChicken says:

    my tab doesn’t boot and it gets stuck on the samsung logo and restarts again and again forever and ever.. any help would be appreciated.. thanks in advance

    • Mahesh Makvana says:

      Did it start behaving like this after you flashed a custom ROM?

      If so, then just flash the stock ROM and everything should be as good as it was.

      • I’m, stuck with samsung logo when i rooted it through ODIN what should i do pls help me..!!!!

        • amit says:

          you must have had froyo. had the same problem here.

          download the appropriate stock rom-

          launch odin,put the device in download mode.and start the process by selecting the req. file in pda.make sure repartition isnt checked. now it should boot and start with gingrbread.

          if it then falls into a bootloop,then do this

          n my case this update completed but it went into a “Boot Loop”. Pretty
          much it stayed on the orbing SAMSUNG screen and never got past there.

          To fix this you need to also update the DBDATA.RFS.TAR file.

          Launch Odin3

          Put the device in download mode

          Connect to the PC

          Should now see a active connection being indicated in the ID:COM box – (In yellow)

          Click the reset button to clear all the fields

          Only check the Auto Reboot option

          Click the PDA button and specify the
          DBDATA.RFS.TAR file

          Click start and wait for the PASS

          You should now be able to reboot.
          now,happily run gingerbread on it.

  21. G says:

    Hi, I tried tis and made d mistake of having froyo while doin t. Then wen i tried to do d stock rom thing, i seemed to work. But now my screen has gone blank. Wat do i do?

  22. Kian says:

    dear Dax, I was transfering kernel to my device as you said, every thing was googd except it not moving in progress bar for about half an hour, I detach my device, it say false and my device do nothing bot a picture shows ! mark between a mobile and a pc picture!!!!!
    Help please

  23. Sudhanva says:

    Can you please leave a link to root the froyo galaxy tab?

    • Dax Krishna says:

      Sudhanva, I suggest you upgrade to Gingerbread, as it offers much more features compared to Froyo…this is the reason why we haven’t put up a link/guide for the Froyo version!

  24. Pierro says:

    Hello i make the step 9, the last of odin, and now my tab don’t turn on and stay with color risks on the screen… what i do?!?!?! please help me

  25. amit says:

    got struck on samsung logo start screen .it does not respond and starts again and p1000.after trying root from odin.pls help

  26. Noor says:

    I have tried to root my device but before that I didn’t notice that I have had froyo on it. Now on Odin it is showed failed as well as my device stop starting and showing a mobile device & computer while I trying to restart or pressing Volume Down + Power button. Can anyone please help??!!!

  27. bird2605 says:

    sorry am late to this party.
    i reach till step 8, and when i connect the tab, the box turns yellow but the ID says 0:Com 11.
    once i start, the process fails.
    i am on 2.3.3, samsung kies and drivers are updated.

    Any help will be appreciated. thanks

  28. taashi says:

    worked likes charm, super easy xda and you rocks

  29. Aju says:

    Hi all, I am in great loss….
    After I have done rooting now my tab is continously getting resstarted with a screen just like rotten screen….
    can any one help me…. my tab is totally lost…..

  30. Desperate says:

    I used Odin but it was stuck in the “SetupConnection’. Now, it shows a figure of a “mobile…!…PC”. It seems broken and I can turn my Tab on.
    Please help!!!!!!!!!!!!!!!!!!

  31. Joseph Onyemakonor Dajoe says:

    Heloo, after installing thisprogram, my device got bricked. It shows the samsung logo and goes back and start rebooting over and over again. Please, what can I do to rectify this

  32. tunjicool says:

    Honestly, i have been going around for a couple of hours now.
    after i did the flashing my device has been in endless boot-loop.
    please, what can i do?
    i have Gingerbread 2.3.6 on the device before i tried the rooting.

  33. mocorongo says:

    – Thks a lot, Ryan I. & Dax K. ! The Update does r-e-a-ll-y function & is worth a while, all that gamble risk, though.
    **/ The guys who got stuck with their Tab_P1000 with 2.2_Froyo, while rooting it, should try to retrieve it through [=Odin3 v3.07.exe], 454KB, reapplying the same .tar archive for PDA software (ClockWorkMode). Somehow it’s resolved my deadlock with the CWM.

  34. mocorongo says:

    – Thks a lot, Ryan I. & Dax K. ! The Update does r-e-a-ll-y function & is worth a while, all that gamble risk, though.
    **/ The guys who got stuck with their Tab_P1000 with 2.2_Froyo, while rooting it, should try to retrieve it through [=Odin3 v3.07.exe], 454KB, reapplying the same .tar archive for PDA software (ClockWorkMode). Somehow it’s resolved my deadlock with the CWM.

  35. Karin Dronkers says:

    Hello there,I came to step 5 in installing the ROM. I chose CM 10.1 experimental.
    But the clockworkmod recovery can’t find my zip files, i put them in the root of the sd card. I have Gingerbread.XWJQ8
    What can be wrong?

  36. ariya says:

    my gt-p1000 is bricked ,,,,need help

  37. barbaraa says:

    my tab doesn’t boot and it gets stuck on the samsung logo and restarts again and again forever and ever.. any help would be appreciated…please help me i really need helpp

  38. Vandit says:

    after step 3 is it necessary to do step 4??

  39. Steve says:

    Thanks for the soft brick

  40. Mbiarrambang Alain Cosmas says:

    when i click start the kernel fails
    drvices build number FROYO.DXKM3

  41. DGittins says:

    Thank you so much for an excellently documented process! I originally tried following Chainfire’s steps but there were dead links and other show-stoppers in the procedure which I couldn’t get past but your steps were all perfect and explained thoroughly. Much appreciated!

  42. Zorulu says:

    I did that with froyo pls help me

  43. Krish says:

    This is by far the best article – written-well for anyone who has no idea of what the heck rooting is. Thanks a lot for this post.
